● Product Description
Our T5 Integrated LED Light packs 3 adjustable color temperatures into a single fixture. Just flip the built-in switch to swap vibes instantly:
Warm white for cozy living spaces or relaxed work nooks - Neutral white for clear, eye-friendly task lighting (offices, workshops) - Cool white for bright, crisp illumination (garages, storage areas).
| Technical Specifications | |
| Input Voltage | AC100-277V 50/60Hz |
| Total harmonic distortion | THD<19% |
| Power Factor | PF>0.95 |
| Efficiency | 110-130LM/W |
| Color Index | Ra>82 |
| Switching Time | 100,000 |
| Lumen maintenance @6000h | >80% |
| Operation Temperature | -10°C ~ +50°C |
| UGR | <19 |
| Life Span | 50,000 hours |
| CCT | 3000K - 4000K - 5000K |
| Material | Aluminum + PC |
● Features

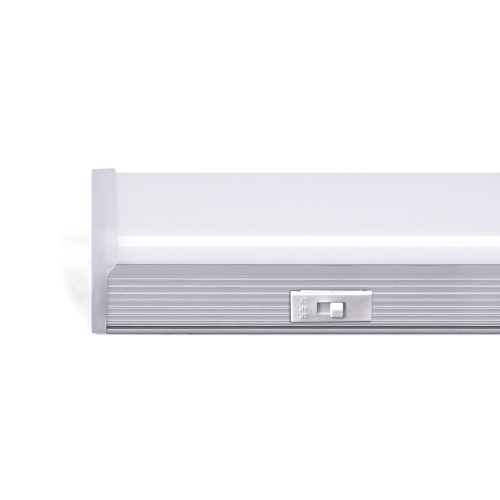

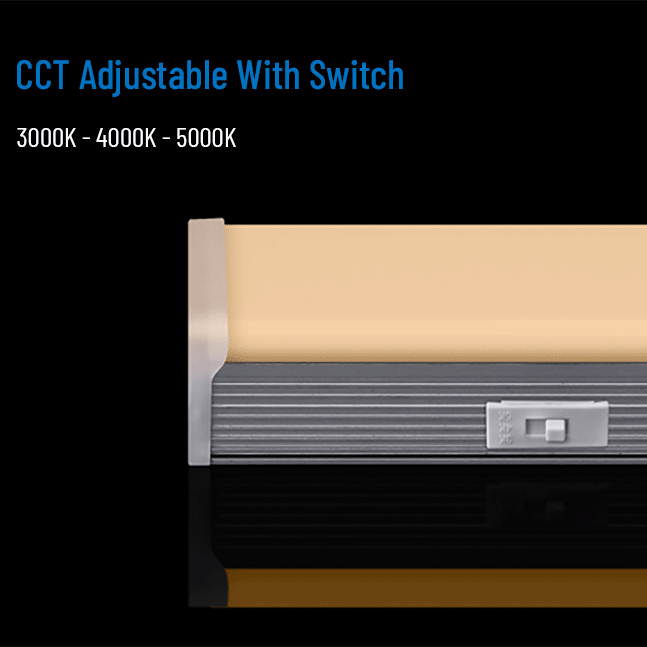

● CCT Tunable With Switch

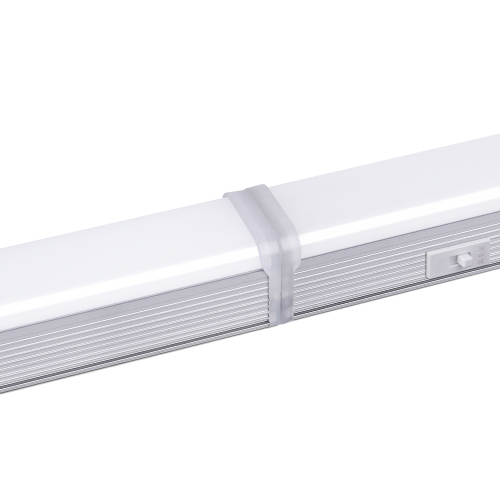

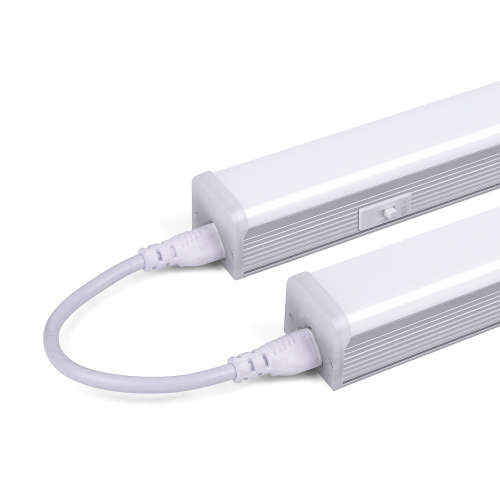

● Patent Male-female linkable design
● Seamless & No Dark in-line connection
● ETL TUV SAA approved, DLC Listed
● Maximum tandem wattage: 200W and 600W optional
● Heat protection system,with excellent internal driver
● Enjoy Hassle-free, safe and easy Installation
● Applications
● Replaces T8/T12 fluorescent fittings
● Warehouses, factories & food storage
● Supermarket, shopping malls, Office
● Home, Hotel, Parking lot, garage etc
| Specifications | |||||
| Model | Length | Power | Led type | Lumens (lm) ±10% | Package |
| LY-T5SL600-15W | 2ft/600mm | 15W | SMD2835 | 1650 - 1800 | 710*260*180 (mm) 20pcs/ctn |
| LY-T5SL900-25W | 3ft/900mm | 25W | SMD2835 | 2750 - 3000 | 1015*260*180 (mm) 20pcs/ctn |
| LY-T5SL1200-30W | 4ft/1200mm | 30W | SMD2835 | 3300 - 3600 | 1310*260*180 (mm) 20pcs/ctn |
| LY-T5SL1200-40W | 4ft/1200mm | 40W | SMD2835 | 4400 - 4800 | 1310*260*180 (mm) 20pcs/ctn |
| LY-T5SL1500-40W | 5ft/1500mm | 40W | SMD2835 | 4400 - 4800 | 1645*210*180 (mm) 16pcs/ctn |
| LY-T5SL1800-44W | 6ft/1800mm | 44W | SMD2835 | 4840 - 5280 | 1945*210*180 (mm) 16pcs/ctn |
| LY-T5SL2400-60W | 8ft/2400mm | 60W | SMD2835 | 6600 - 7200 | 2445*160*146 (mm) 9pcs/ctn |
Tailored Lighting Solutions for Diverse Environments
The CCT Tunable T5 Led Batten is engineered to meet the lighting demands of commercial and industrial users seeking adaptable illumination. This fixture suits offices, retail outlets, workshops, and display areas where task-specific lighting enhances productivity and ambience. It enables quick adjustment between warm, neutral, and cool white light via an integrated color temperature switch, providing end users and facility managers precise control over lighting conditions without additional equipment. Such versatility supports dynamic environments needing tailored visual comfort and operational efficiency.
Advanced Engineering Delivers Efficiency and Reliability
Constructed from robust aluminum with a polycarbonate diffuser, the CCT Tunable T5 Led Batten combines durability with excellent heat dissipation, extending product lifespan. Available in lengths ranging from 2ft to 8ft and wattages between 15W and 60W, it supports multiple voltage inputs (AC100-277V / AC100-240V 50/60Hz) while incorporating 3CCT options (3000K to 6000K) for fine-tuned white lighting. Certifications including ETL, cETL, TUV, CE, and RCM demonstrate compliance with global safety and quality standards, underscoring its reliability in demanding commercial applications.
Enhancing Operational Spaces with Dynamic Lighting
In practical deployments, the CCT Tunable T5 Led Batten addresses critical lighting needs across sectors including education, healthcare, retail, and manufacturing. Its ability to switch color temperatures without rewiring facilitates adaptable visual environments for presentations, focused tasks, or ambient settings. This flexibility optimizes energy consumption while maintaining consistent light uniformity and high-quality color rendition. Integration into existing ceiling or under-cabinet mounts further streamlines upgrades, contributing to modernizing facilities with smart, energy-conscious lighting solutions.
● Product Advantages
Structural and Design Benefits Enabling System Integration
The CCT Tunable T5 Led Batten features a sleek aluminum construction paired with a PC diffuser designed to optimize light distribution and thermal management. Its modular sizing (2ft to 8ft) and multiple wattage offerings enhance system design flexibility, allowing tailored configuration to fit diverse spatial requirements. The integrated 3CCT switch simplifies installation and reduces the need for external controls, while broad voltage compatibility ensures adaptability across electrical systems. Together, these structural attributes provide robust, scalable solutions for facility lighting schemes.
Performance and User-Centric Advantages for Operational Efficiency
From a performance perspective, the CCT Tunable T5 Led Batten delivers consistent luminance with adjustable color temperatures that improve visual ergonomics for end users. The product’s energy-efficient LED technology lowers operational costs and prolongs service intervals due to advanced heat dissipation and durable materials. Its straightforward color tuning supports task-specific lighting setups that enhance user comfort and productivity. Overall, this fixture aligns with operational goals targeting maintenance reduction, energy savings, and optimized workplace illumination.
● Options
● Fuctions: Standard Version / Triac Dimmable / ON-OFF Switch

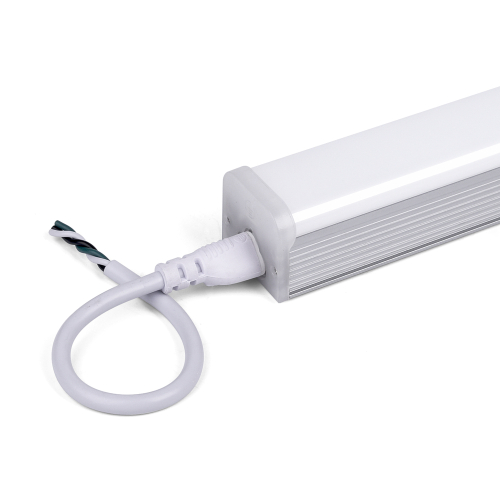

● Connection Way: Lead in wire / M-F Connection / Power on back wiring
● Extention cable: Power cord with plug
● Installation Type : Standard Clip / Magnetic Clip / Suspending Kits
● Cover: Milky / Clear
● Product Line Drawing (Size:mm) ● Light Distribution Curve
One 250mm power cord, one 250mm connection cable, one small connector, clips and screws...
(Length for power cord or connection cable can be customized)
● Installation
● To avoid electric shock, maintenance and installation should only be carried out by a professional electrician
● Please use it under correct input power range
● Do not use in the outdoor environment
● Before installation, turn off the power to make sure safety
● Follow the diagram for below for proper installation
● Use Scenarios
Configurable Lighting in Office and Conference Environments
In modern office settings, flexible lighting is essential for diverse work activities, from focused desk work to collaborative meetings. The CCT Tunable T5 Led Batten allows easy switching between warm and cool white lighting, improving employee comfort and reducing eye strain. Its ETL and TUV certifications guarantee compliance with workplace safety regulations. Mounted on ceilings or under cabinets, this LED batten integrates seamlessly into existing infrastructures, supporting energy-efficient, adaptable lighting systems that respond to varying intensity and ambiance requirements throughout the workday.
Adaptive Illumination for Retail and Display Spaces
Retail environments benefit from lighting that highlights products and adjusts to customer traffic and display changes. The CCT Tunable T5 Led Batten provides tunable white light options (3000K–6000K), enabling store managers to optimize visual merchandising with appropriate color temperatures. Its durable aluminum and PC components ensure longevity under frequent use, while broad voltage acceptance allows flexible installation in diverse retail layouts. By integrating this tunable LED batten into store lighting systems, spaces achieve improved atmosphere control and energy efficiency crucial for commercial success.
● FAQ
What materials are used in the construction of the CCT Tunable T5 Led Batten?
The CCT Tunable T5 Led Batten features a durable, lightweight aluminum housing combined with a polycarbonate (PC) diffuser. This design ensures efficient heat dissipation and uniform illumination, providing long service life and reliable performance in various lighting environments.
Can the color temperature of the CCT Tunable T5 Led Batten be customized on site?
Yes, the CCT Tunable T5 Led Batten includes an integrated 3CCT switch, allowing users to easily select from multiple color temperatures (3000K to 6000K) directly on the fixture without additional equipment or rewiring.
What installation options are available for this LED batten light?
The CCT Tunable T5 Led Batten supports versatile mounting options including ceiling installation and under-cabinet placement. Its slim and lightweight design simplifies installation in offices, workshops, retail spaces, and other commercial or residential areas.
What certifications does this product hold to ensure quality and safety?
This CCT Tunable T5 Led Batten is certified by globally recognized standards, including ETL, cETL, TUV, CE, and RCM. These certifications confirm the fixture meets strict safety, quality, and performance requirements, making it suitable for diverse international markets.
