● Product description
The T5 light bar is an integrated design for indoor applications. Highly efficient light engine with long lifespan and excellent color ensures excellent light quality. They can be seamlessly connected with optional cables or connectors.
| Technical specifications | |
| Input voltage | AC100-277V 50/60Hz |
| Total harmonic distortion | THD<19% |
| Power factor | PF>0.95 |
| Efficiency | 110-130LM/W |
| Color index | Ra>82 |
| switching time | 100,000 |
| Lumen maintenance @6000h | >80% |
| Operation Temperature | -10°C ~ +50°C |
| UGR | <19 |
| lifespan | 50.000 Stunden |
| CCT | 3000K,4000K,5000K,6000K |
| material | Aluminum + PC |
● Features
● Patented male-female connectable design
● Seamless & No Dark Inline Connection
● ETL TUV SAA approved, DLC listed
● Maximum tandem power: 200W and 600W optional
● 0.8mm thick aluminum housing for excellent heat dissipation
● Heat protection system with excellent internal driver
● Enjoy a hassle-free, safe and easy installation
● Product Advantages
Structural and Design Benefits Enabling System Integration
T5 LED Batten features a sleek aluminum construction paired with a PC diffuser designed to optimize light distribution and thermal management. Its modular sizing (2ft to 8ft) and multiple wattage offerings enhance system design flexibility, allowing tailored configuration to fit diverse spatial requirements. The integrated 3CCT switch simplifies installation and reduces the need for external controls, while broad voltage compatibility ensures adaptability across electrical systems. Together, these structural attributes provide robust, scalable solutions for facility lighting schemes.
Performance and User-Centric Advantages for Operational Efficiency
From a performance perspective, the CCT Tunable T5 LED Batten delivers consistent luminance with adjustable color temperatures that improve visual ergonomics for end users. The product’s energy-efficient LED technology lowers operational costs and prolongs service intervals due to advanced heat dissipation and durable materials. Its straightforward color tuning supports task-specific lighting setups that enhance user comfort and productivity. Overall, this fixture aligns with operational goals targeting maintenance reduction, energy savings, and optimized workplace illumination.
● Applications
● Replaces T8/T12 fluorescent lamps
● Warehouses, factories & food warehouses
● Supermarket, shopping malls, office
● Home, hotel, parking lot, garage, etc
| Specifications | |||||||
| Model | length | Power | CCT | Cover | Led type | Lumens (lm) ±10% | Package |
| LY-T5SL600-15W | 2ft/600mm | 15W | 3000K 4000K 5000K 5700K 6000K |
Frosted Clear |
SMD2835 | 1650 - 1800 | 710*260*180 (mm) 20pcs/ctn |
| LY-T5SL900-25W | 3ft/900mm | 25W | SMD2835 | 2750 - 3000 | 1015*260*180 (mm) 20pcs/ctn | ||
| LY-T5SL1200-30W | 4ft/1200mm | 30W | SMD2835 | 3300 - 3600 | 1310*260*180 (mm) 20pcs/ctn | ||
| LY-T5SL1200-40W | 4ft/1200mm | 40W | SMD2835 | 4400 - 4800 | 1310*260*180 (mm) 20pcs/ctn | ||
| LY-T5SL1500-40W | 5ft/1500mm | 40W | SMD2835 | 4400 - 4800 | 1645*210*180 (mm) 16pcs/ctn | ||
| LY-T5SL1800-44W | 6ft/1800mm | 44W | SMD2835 | 4840 - 5280 | 1945*210*180 (mm) 16pcs/ctn | ||
| LY-T5SL2400-60W | 8ft/2400mm | 60W | SMD2835 | 6600 - 7200 | 2445*160*146 (mm) 9pcs/ctn | ||
● Options
● Functions: Standard version / Triac dimmable / ON-OFF switch
● Connection type: Introductory cable / M-F connection / Rear power supply
● Extension cable: power cable with plug
● Installation type: standard clip/magnetic clip/hanging sets
● Cover: Milky / Clear

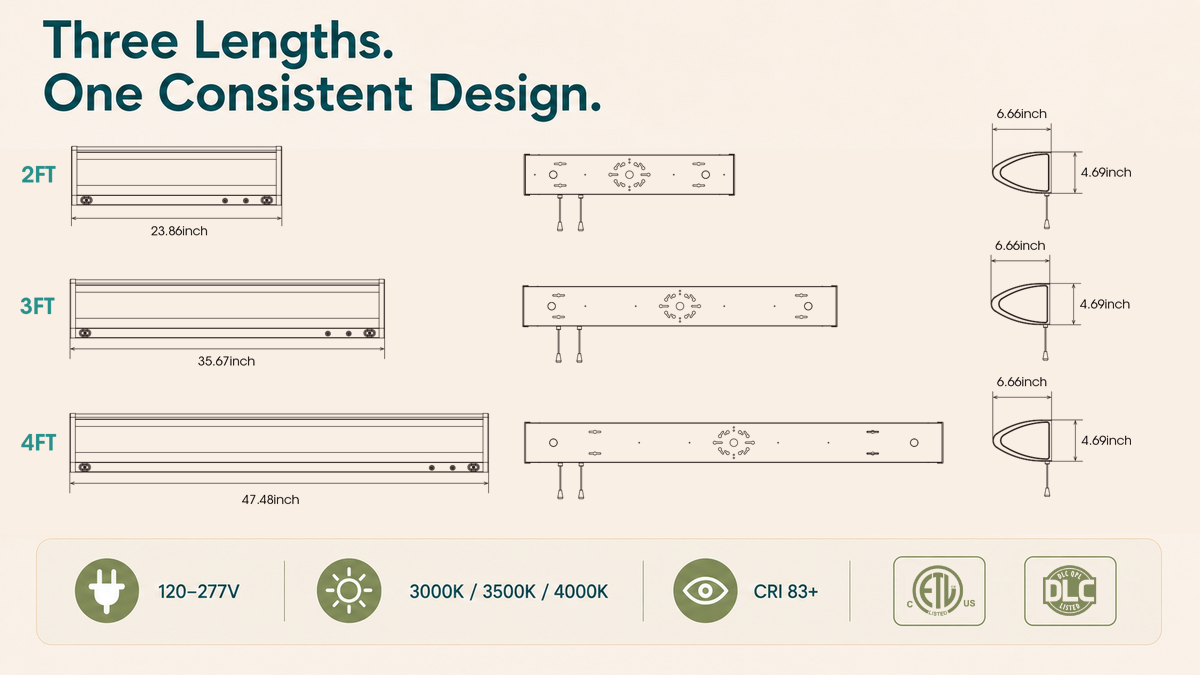

● Product Line Drawing (Size:inch)
● Installation
● To avoid electric shock, maintenance and installation should only be performed by a professional electrician
● Please use it in the correct input power range
● Do not use in the outdoor environment
● Before installation, turn off the power to make sure safety
● Follow the diagram below for proper installation
T5 LED Batten Light is best suited to utility rooms, corridors, shops, workshops, storage areas and commercial back-of-house spaces. Its main distinction is integrated T5-style LED batten form. For a project, match the fixture to the required light level, mounting conditions and control strategy rather than choosing only by nominal wattage.
Start with length, output, CCT, emergency/control option, mounting and replacement scenario. Then compare the exact model specifications, electrical requirements and installation method. For larger projects, a photometric file or lighting layout is the best way to confirm spacing, target illuminance and whether the configuration fits the space.
The main difference is integrated T5-style LED batten form. Choose this version when that feature directly supports the project requirement; choose fluorescent battens when the simpler alternative already meets the lighting, installation and control needs. Compare delivered output, optics, controls, mounting and environmental requirements before deciding.
Provide project quantity, installation location, required size, input voltage, target CCT, lumen or wattage requirement, control method, mounting method and destination market. If the project has certification, emergency, IP/IK, dimming or packaging requirements, include them so the correct model can be matched to the request.
Often yes, but replacement should be based on fixture dimensions, delivered lumens, mounting points, wiring and target illuminance rather than nominal wattage alone. Compare the existing fixture layout with the LED model before a one-for-one retrofit
